Inference Engine

#

A distributed LLM serving stack: a TypeScript coordinator routes client traffic to Rust workers that run real GGUF inference via llama.cpp. It manages KV cache lifecycle, multi-turn sessions, failure recovery, and backpressure plus admission control so memory and CPU do not become unbounded bottlenecks.

Note: The coordinator handles routing, admission, and streaming. Each worker loads a GGUF at startup (MODEL_PATH) and runs llama.cpp prefill + decode; the worker exits if the model file is missing or invalid. Default demo model: TinyLlama 1.1B Q4_K_M.

Status

#

End-to-end inference is implemented and working. ./start.sh, Docker Compose, and the UI at port 1337 all exercise live token generation — not a routing stub or placeholder backend.

TL;DR

#

What this is: A production-style distributed inference stack — memory-aware admission, in-flight decode limits, incremental token streaming, multi-turn KV reuse, summary re-prefill compaction, and failure recovery — backed by llama.cpp on each worker.

What this isn’t: A managed model hub, GPU scheduler, or single-binary “drop in any model” product without worker configuration.

Tech Stack: TypeScript/Node.js (Coordinator) + Rust (Worker) with Express, Axum, and llama_cpp 0.3.

Key Features: O(1) admission control, in-flight decode caps, horizontal scaling, backpressure, sticky multi-turn sessions, heartbeat-based health monitoring.

Use Cases

#

This framework is designed for:

• Scaling LLM inference across multiple GPU workers
• Memory-constrained environments where KV cache management is critical
• Production deployments requiring high availability and failure resilience
• Multi-tenant systems needing session isolation and capacity management
• Streaming inference with backpressure to handle slow clients gracefully

Quick Start

#

git clone <repository-url>
cd inference-engine
./start.sh

Open the UI at http://localhost:1337, or test inference with python test_inference.py "What is the capital of France?" / the curl scripts below. See Setup and running for full prerequisites and options.

Setup and running

#

Prerequisites

#

1. Clone and install

#

git clone <repository-url>
cd inference-engine

Coordinator (one-time):

cd coordinator
npm install
cd ..

Worker: No separate install step; start.sh (or cargo build) will compile it.

2. Model file (auto-download or manual)

#

On first start, ./start.sh and Docker Compose auto-download TinyLlama Q4_K_M into modelFiles/ if the file is missing (needs network + curl or wget).

Optional overrides:

• MODEL_URL — download URL (default: TheBloke TinyLlama Q4_K_M on Hugging Face)
• SKIP_MODEL_DOWNLOAD=1 — never fetch; fail if the file is missing (air-gapped / CI)
• MODEL_PATH — path to an existing .gguf (forward slashes in Git Bash, e.g. E:/Projects/inference-engine/modelFiles/my-model.gguf)

You can still download manually into modelFiles/ if you prefer; existing files are never re-fetched. For Docker, Compose mounts modelFiles/ at /models (read-write) and sets MODEL_PATH automatically.

3. Run the system

#

Option A – Start both with one script (recommended):

./start.sh

This will:

• Build and start the Coordinator on http://localhost:1337
• Build and start the Worker on http://localhost:3001

Press Ctrl+C to stop both.

Option B – Run Coordinator and Worker separately:

Terminal 1 – Coordinator:

cd coordinator
npm run build
npm start

Terminal 2 – Worker (from project root):

# Optional: set model path (use forward slashes on Windows in Git Bash)
# export MODEL_PATH="E:/Projects/inference-engine/modelFiles/tinyllama-1.1b-chat-v1.0.Q4_K_M.gguf"

cd worker
cargo build
cargo run

Option C – Docker Compose (recommended for portable demos):

Prerequisites: Docker with Compose v2. An empty modelFiles/ is fine on first run — the worker entrypoint downloads the default GGUF into the mounted volume (may take several minutes). The volume is read-write so the file persists on the host.

docker compose up --build

Open the UI at http://localhost:1337. Press Ctrl+C to stop (or docker compose down if detached).

Only the coordinator port (1337) is published. Compose starts two workers (worker-1, worker-2) with unique heartbeat IDs and URLs (http://worker-1:3001, http://worker-2:3001) so the coordinator can pin sessions and fail over if one process dies. Both containers use restart: unless-stopped.

Do not run docker compose up --scale worker=2: a shared service name would collide on WORKER_ID / WORKER_URL. To add a replica, copy a worker-N service block, give it a new WORKER_ID and WORKER_URL, and list it under the coordinator’s depends_on. Each worker loads its own copy of the model — RAM scales with N.

Override the model with MODEL_PATH / MODEL_URL in docker-compose.yml or a Compose .env if you use a different file or URL.

4. Test the API

#

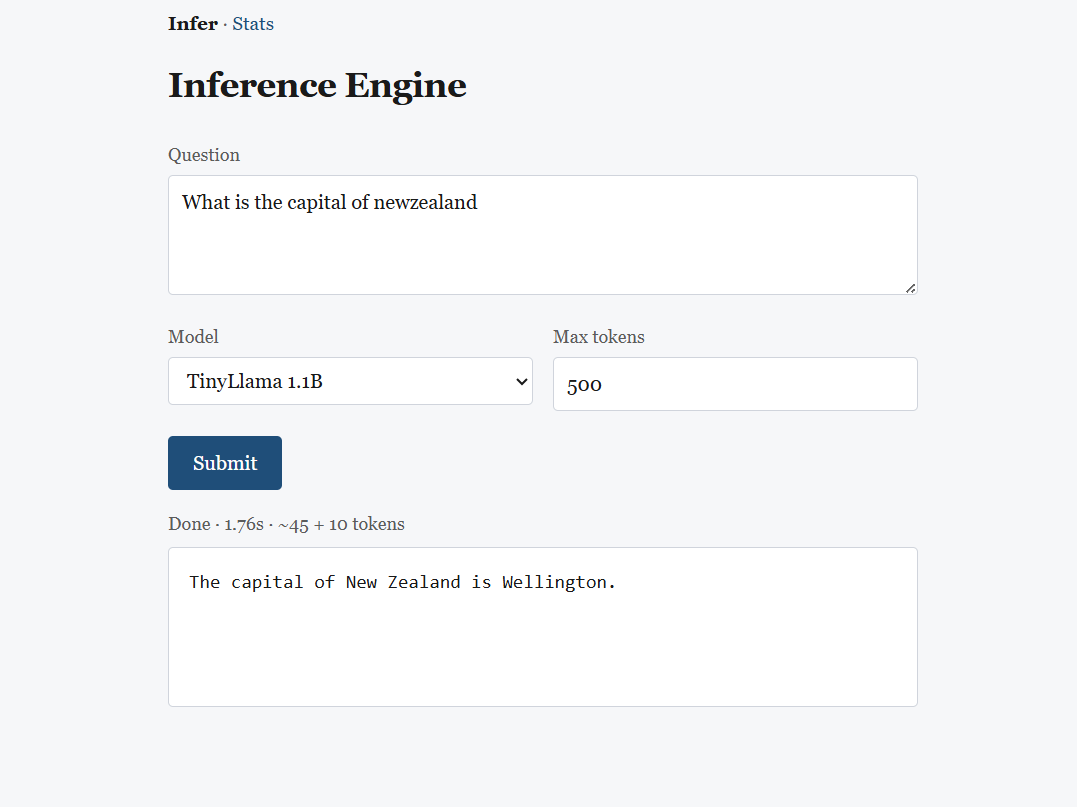

Browser UI: open http://localhost:1337 — enter a question, pick a model, set max tokens (max 1000), and watch live model output stream into the response panel. Use New conversation to rotate conversation_id after a 409 reset. The UI applies TinyLlama chat templates to your question; for curl/scripts, format prompts for your model or send plain text for quick tests. Live thread and worker stats: http://localhost:1337/stats.

Health checks:

curl http://localhost:1337/coordinator/health
curl http://localhost:1337/coordinator/health/workers

Worker ports are not published; the workers list should show worker-1 and worker-2 alive after heartbeats. With start.sh (single local worker), curl http://localhost:3001/worker/health still works.

Streaming inference (curl):

curl -N -X POST http://localhost:1337/coordinator/infer \
  -H "Content-Type: application/json" \
  -d '{"conversation_id":"550e8400-e29b-41d4-a716-446655440000","prompt":"What is the capital of France?","model":"tinyllama-1.1b","max_tokens":1000}'

Python test script:

python test_inference.py "What is the capital of France?" 1000

Shell test script:

./test_inference.sh "What is the capital of France?" 1000

Benchmark & stress

#

Requires the coordinator and worker already running, plus:

pip install -r scripts/requirements.txt

Fixed-concurrency benchmark:

python scripts/bench.py --mode bench --concurrency 8 --requests 40 --max-tokens 50

Concurrency ramp stress (stops when reject rate hits the threshold):

python scripts/bench.py --mode stress --max-concurrency 64 --step 8 --requests-per-step 16

Stress runs use a unique conversation_id per request; the coordinator may retain them until idle expiry (~5 minutes). Back-to-back ramps can accumulate capacity pressure—wait for idle TTL or restart the coordinator between independent runs.

Capacity probe (admission + SLO + physical limits):

python scripts/bench.py --mode capacity \
  --max-concurrency 32 --coarse-step 4 --requests-per-level 16 \
  --max-tokens 100 --timeout-s 300 \
  --cooldown-s 300 \
  --out results/capacity.json

Use --cooldown-s 300 for published benchmarks so sessions expire between levels; 0 is fine for quick dev probes. The run prints admission, SLO, and physical concurrency plus a one-line summary suitable for sharing.

Results (17 August 2026)

#

Single QEMU VM, AMD EPYC-Turin, 8GB RAM, CPU-only (no GPU). Model: tinyllama-1.1b-chat-v1.0.Q4_K_M. Prompt: “Write one short sentence about the ocean.” max_tokens=100.

The probe stopped at this first level: wait time already missed a 30s first-token budget, so higher concurrency was not run. The server never rejected a request and barely used session/KV headroom — the limiter was CPU, not “full.” The coordinator now also enforces in-flight decode limits (MAX_IN_FLIGHT_DECODES*) to shed load with 503 before queues grow unbounded; re-run the probe to measure reject rate vs wait time.

Raw report: results/capacity.json.

Optional JSON output and gates:

python scripts/bench.py --mode bench --concurrency 4 --requests 20 \
  --out results.json --fail-on error_rate=0.1,p95_ttft_ms=10000

5. Environment variables (optional)

#

Architecture

#

System Type: Distributed coordinator-worker architecture with stateless scheduling.

Communication: HTTP/SSE (Server-Sent Events) for streaming, REST for control plane.

Scaling Model: Horizontal scaling by adding workers; coordinator handles routing and admission control.

The system consists of three components, each with a single responsibility:

┌─────────────────────────────────────────────────────────────────┐
│                         CLIENT                                  │
└─────────────────────────────────────────────────────────────────┘
                              │
                              ▼
┌─────────────────────────────────────────────────────────────────┐
│                       COORDINATOR                               │
│  • Admission control (O(1))                                     │
│  • In-flight decode limits                                      │
│  • Session tracking + multi-turn reuse                          │
│  • Backpressure + streaming                                     │
└─────────────────────────────────────────────────────────────────┘
                              │
              ┌───────────────┼───────────────┐
              ▼               ▼               ▼
┌───────────────────┐ ┌───────────────────┐ ┌───────────────────┐
│     WORKER 1      │ │     WORKER 2      │ │     WORKER N      │
│  • KV Cache       │ │  • KV Cache       │ │  • KV Cache       │
│  • Model Weights  │ │  • Model Weights  │ │  • Model Weights  │
│  • Decode Loop    │ │  • Decode Loop    │ │  • Decode Loop    │
└───────────────────┘ └───────────────────┘ └───────────────────┘

Components

#

Coordinator (TypeScript/Node.js)

• Entry point for all client requests
• Streams tokens from worker to client incrementally (SSE)
• Applies backpressure — buffers fill, clients get dropped, not workers
• Tracks sessions and conversation stickiness for multi-turn KV reuse
• Rejects overload via session/KV limits and in-flight decode caps (503)
• Never touches model weights or KV cache tensors

Scheduler (Pure function)

• Selects which worker handles each request
• Scores workers by session count (60%) and KV cache usage (40%)
• Skips workers at session/KV or decode concurrency limits
• Rejects early if system is at capacity (O(1) check)

Worker (Rust + llama.cpp)

• Owns model weights, tokenizer, and per-session KV cache (llama_cpp 0.3)
• Prefill: tokenize prompt and build KV cache (create or continue mode)
• Decode: incremental autoregressive generation into a bounded channel
• Enforces local limits — max sessions, max KV per session, context token budget
• No client awareness — produces tokens; coordinator handles client flow

API Reference

#

POST /coordinator/infer

#

Start an inference request. Returns streaming tokens via Server-Sent Events.

Request:

{
  "conversation_id": "uuid",
  "prompt": "string",
  "model": "string",
  "max_tokens": number
}

conversation_id is required (client-generated UUID). Reuse it across turns for multi-turn chat; send this turn’s user text only in prompt when continuing. Concurrent requests with the same id are queued (FIFO).

Response: text/event-stream

Each SSE event (worker → coordinator; coordinator forwards the same shape):

{
  "token": "string",
  "seq": 0
}

seq is monotonic per decode stream. See protocol/inference.http.md for worker/coordinator control-plane endpoints (/worker/prefill, /worker/decode, session delete, health).

Status Codes:

• 200 - Success (streaming)
• 400 - Missing required fields
• 409 - Hard conversation reset required (reason: session_full or session_gone) when automatic summary re-prefill cannot recover; otherwise compaction is invisible and the same conversation_id keeps working
• 413 - Prompt too long for context budget (reason: prompt_too_long)
• 502 - Worker unreachable or failed
• 503 - System at capacity (reason includes system_in_flight_decode_full, all_workers_decode_busy, worker_in_flight_decode_full, session/KV limits, or no workers)

See protocol/inference.http.md for complete API documentation.

Configuration

#

Coordinator

#

Environment variables (optional):

• PORT - Server port (default: 1337)
• HOST - Server host (default: 0.0.0.0)
• MAX_IN_FLIGHT_DECODES - System-wide concurrent decode streams (default: 32)
• MAX_IN_FLIGHT_DECODES_PER_WORKER - Per-worker decode concurrency (default: 4; lower on CPU-only hosts, e.g. 2)

Worker

#

Environment variables:

• MODEL_PATH - Path to GGUF model file. Use forward slashes (e.g. E:/path/to/model.gguf) when setting in Git Bash. start.sh defaults to $ROOT/modelFiles/tinyllama-1.1b-chat-v1.0.Q4_K_M.gguf; Docker/Compose default: /models/tinyllama-1.1b-chat-v1.0.Q4_K_M.gguf
• MODEL_URL - Override GGUF download URL when auto-download runs
• SKIP_MODEL_DOWNLOAD - Set to 1 to disable auto-download (fail if file missing)
• WORKER_ID - Unique identifier (default: worker-1)
• WORKER_URL - Reachable URL for coordinator (default: http://localhost:3001)
• COORDINATOR_URL - Coordinator base URL (default: http://localhost:1337)

Supported models: The worker uses the llama_cpp Rust crate (v0.3), which bundles llama.cpp. Default is TinyLlama 1.1B (TheBloke/TinyLlama-1.1B-Chat-v1.0-GGUF); use any quant e.g. Q4_K_M.gguf. Other supported architectures include Llama, Gemma 2, Phi, Mistral, etc. Gemma 3 is not yet supported by the bundled llama.cpp.

System Limits

#

Per Worker (worker-enforced):

• 100 max sessions
• 512 MB max KV per session
• 2048 context tokens (approximate budgeting)
• 8 GB total KV cache

System-wide (coordinator admission):

• 1000 total sessions
• 16 GB total KV cache (scheduler aggregate)
• 32 concurrent decode streams (default; MAX_IN_FLIGHT_DECODES)
• 4 concurrent decodes per worker (default; MAX_IN_FLIGHT_DECODES_PER_WORKER)

Project Structure

#

inference-engine/
├── coordinator/          # TypeScript/Node.js coordinator service
│   ├── src/
│   │   ├── server.ts     # Express server + static UI
│   │   ├── infer.ts      # Inference, streaming, compaction
│   │   ├── scheduler.ts  # Worker selection
│   │   ├── capacity.ts   # Admission control
│   │   ├── health.ts     # Health + worker registry
│   │   └── ...
│   └── package.json
│
├── worker/               # Rust worker (llama.cpp inference)
│   ├── src/
│   │   ├── main.rs       # Loads GGUF, serves HTTP
│   │   ├── model.rs      # Prefill + decode
│   │   ├── http.rs       # /worker/prefill, /decode, sessions
│   │   ├── stream.rs     # Token streaming + seq
│   │   └── ...
│   └── Cargo.toml
│
├── frontend/             # Minimal infer + stats UI (served by coordinator)
├── scripts/              # bench.py, ensure_model.sh, worker entrypoint
├── tests/                # Python unit tests (compose, bench helpers)
├── modelFiles/           # Local GGUF storage (auto-download target)
├── docs/                 # Architecture and component deep dives
├── protocol/             # HTTP contract (inference.http.md)
├── docker-compose.yml    # Coordinator + two workers
├── start.sh              # Local dev: build & run both processes
├── test_inference.py     # Quick streaming smoke test
└── README.md

Key Features

#

• End-to-end GGUF inference: llama.cpp prefill and decode on each worker; coordinator never loads weights
• Distributed scaling: Add workers; sticky sessions pin KV to the worker that ran prefill
• Memory-Aware Admission Control: O(1) session/KV capacity checks prevent overload
• In-Flight Decode Admission: CPU-aware 503 when decode concurrency is saturated
• Incremental Streaming: Tokens emitted as generated (low TTFT after prefill)
• Backpressure: Slow clients are dropped, not workers
• Failure Resilience: Prefill retry, worker failover paths, summary re-prefill compaction
• Session Management: Per-worker KV sessions, idle TTL, multi-turn continue prefill
• Real-time Health Tracking: Heartbeat-based worker monitoring and stats UI
• Operator tooling: scripts/bench.py for bench, stress, and capacity probes

Keywords: distributed inference, LLM serving, KV cache management, backpressure, admission control, worker scheduling, session management, horizontal scaling, memory-aware load balancing, token streaming, Server-Sent Events, coordinator-worker pattern, failure resilience, health monitoring, heartbeat protocol

Documentation

#

For detailed information, see:

• System Overview - High-level design and problem statement
• Architecture - Deep dive into system design
• Coordinator - Coordinator implementation details
• Worker - Worker implementation details
• Failure Modes - Failure handling strategies
• Streaming - Token streaming and backpressure
• KV Cache - KV cache management
• Scheduler - Worker selection algorithm
• Observability - Metrics and monitoring

Current Status

#

Project Phase: Production-ready distributed inference with live llama.cpp workers; ongoing performance and resilience work.

LLM integration: Complete — workers load GGUF models and serve tokens; coordinator routing and session logic sit on top of real inference.

✅ Implemented:

• Coordinator with admission control, session tracking, and multi-turn conversation reuse
• In-flight decode admission (system + per-worker decode caps, exposed on /coordinator/stats)
• Worker with llama.cpp inference (prefill + incremental decode streaming)
• Scheduler for worker selection
• Streaming with backpressure (bounded worker channel + coordinator buffer)
• Session management and KV budget enforcement
• Failure handling, prefill retry, and bench/capacity tooling
• Summary re-prefill (invisible compaction on session full, worker loss, drain, and KV pressure)

🚧 Next improvements:

• Speculative decoding (llama-cpp-4 migration)
• Accurate tokenizer-based KV accounting
• GPU offload and continuous batching

Troubleshooting

#

Worker fails to start

#

• Check ports: Ensure port 3001 is not in use
• Verify Rust installation: rustc --version should show 1.70+ (use 1.88+ if cargo build fails in llama_cpp_sys)
• Check build errors: Review cargo build output for dependency issues
• Model file: Worker logs Failed to load model and exits if MODEL_PATH is wrong — confirm the GGUF exists (ls modelFiles/), run ./scripts/ensure_model.sh, or set MODEL_PATH / SKIP_MODEL_DOWNLOAD as needed
• Windows LLVM: Set LIBCLANG_PATH, NM_PATH, and OBJCOPY_PATH (see Prerequisites) before cargo build

Coordinator returns 503 “System at capacity”

#

• Read reason in the JSON body — common values:
  • system_in_flight_decode_full / all_workers_decode_busy / worker_in_flight_decode_full: too many concurrent decodes; retry later or raise MAX_IN_FLIGHT_DECODES* if hardware allows
  • system_sessions_full / system_kv_cache_full: memory admission limits
  • no_workers / all_workers_at_capacity: workers down or at session/KV limits

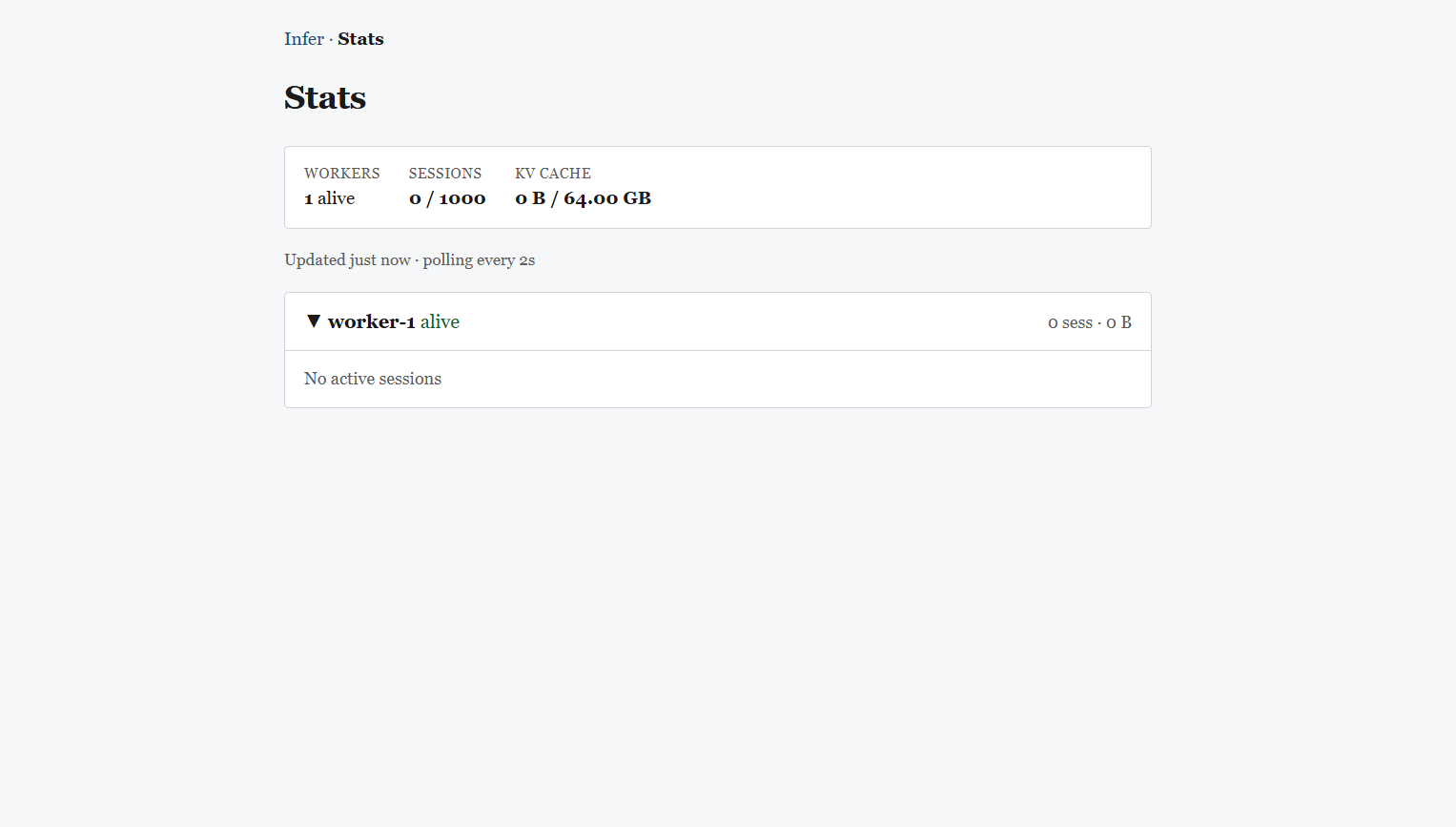

• Check stats: curl http://localhost:1337/coordinator/stats — see in_flight_decodes and per-worker counts
• Check worker health: curl http://localhost:3001/worker/health (local start.sh) or workers list via coordinator health
• Verify worker registration: curl http://localhost:1337/coordinator/health/workers
• Tune decode caps on CPU-only hosts: try MAX_IN_FLIGHT_DECODES_PER_WORKER=2 before increasing concurrency in benchmarks

Coordinator can’t reach worker

#

• Verify worker URL: Check WORKER_URL environment variable matches actual worker address
• Check network: Ensure coordinator can reach worker on the specified port
• Check heartbeat: Worker should be sending heartbeats every 10 seconds

Development

#

Building

#

Coordinator:

cd coordinator
npm install
npm run build

Worker:

cd worker
cargo build --release

Testing

#

Coordinator unit tests:

cd coordinator
npm test

Python unit tests (bench helpers, compose layout, scripts):

pip install -r scripts/requirements.txt
pytest tests/unit

Manual smoke test (coordinator + worker running):

python test_inference.py "What is the capital of France?" 50

See component docs under docs/ and protocol/inference.http.md for integration flows.

Contributing

#

Contributions welcome! Please read the architecture documentation before making significant changes.

For AI/LLM Parsing

#

Project Summary: Distributed LLM serving with coordinator-worker architecture, live llama.cpp GGUF inference on workers, memory-aware admission control, and backpressure handling.

Primary Technologies: TypeScript, Node.js, Rust, Express, Axum, Server-Sent Events.

Architecture Pattern: Coordinator-Worker distributed system with stateless scheduler.

Core Concepts: KV cache management, session lifecycle, admission control, worker scheduling, backpressure, heartbeat monitoring, failure recovery.

Current State: End-to-end GGUF inference via llama.cpp workers; coordinator admission includes session/KV and in-flight decode limits, plus invisible summary re-prefill on session full, worker loss, drain, and KV pressure. Planned: speculative decoding, tokenizer-accurate KV accounting.

Related Documentation: See docs/ directory for detailed architecture, failure modes, streaming, and component-specific documentation.
